Features

The consumables are the users existing steel wire, which has higher accuracy and reproducibility than image detection. Not using compressed air, working without noise, improving the operators experience. Desktop layout, compact size, allowing operators to inspect more machines. Rich modes: one pass and one stop, two passes and two stops, first pass and then stop, first stop and then pass, and four position single pass. Double hopper and double good product material box can sort two specifications of inner holes on the same machine. Not in contact with metal to prevent metal contamination of the ferrules; Do not use a vibrating machine to prevent mechanical damage to the ferrules. Weight is easier to batch debug compared to springs and pressure sensors, and more suitable for different specifications of inner holes. Important electrical components are selected from industrial automation products widely used internationally, greatly extending the average time between failures.

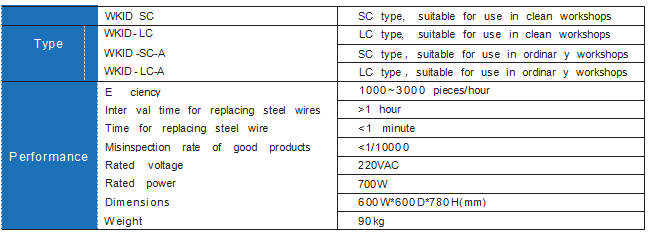

Specification
