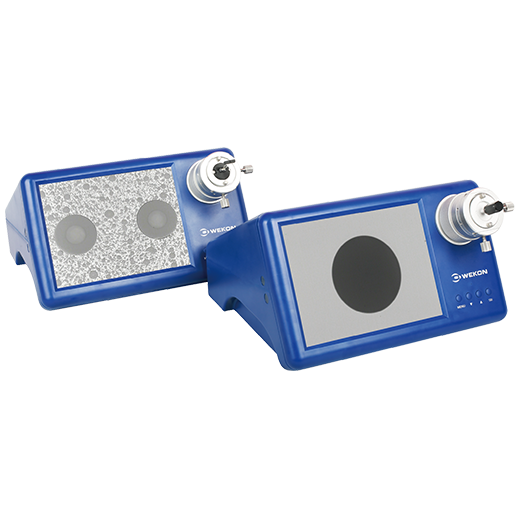

Fiber End-Face Inspector
Product Applications
Widely used to detect end-face defects in the manufacturing processes of MTs, MPOs, TOSAs/ROSAs, optical modules, and other components.

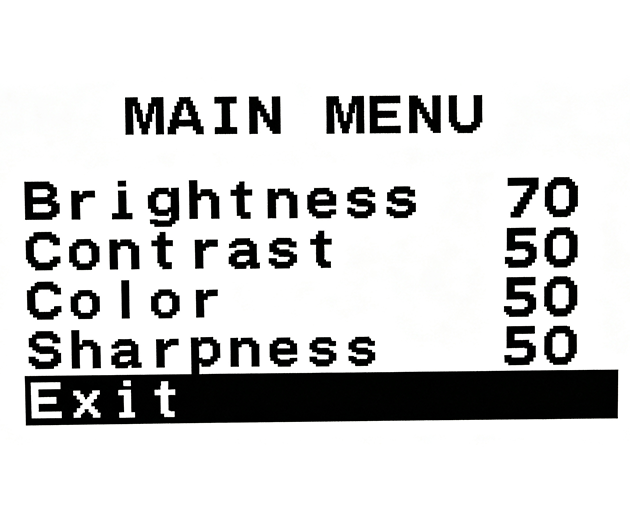

Product Features
We define product performance through core technologies to meet the demanding requirements of industrial testing.
-
01With its ergonomic design, the device allows for direct viewing of the end-view image, making inspection, operation, and image observation faster and more comfortable.
-
02We select high-quality components to highlight ultra-fine scratches and provide a more realistic representation of the end-face details.
-
03Equipped with a variety of high-precision adapter interfaces, it easily handles a wide range of single- and multi-core fiber end faces.
-
04Precise insertion and removal consistency ensures that the fiber is always properly seated every time it is inserted, providing a better user experience.
-
05Supports a variety of output functions, including USB input for external handheld testers, USB output to computers, and BNC expansion connections, making it easy to meet a wide range of management needs.
-
06The product meets CE, CEM, and RoHS standards.

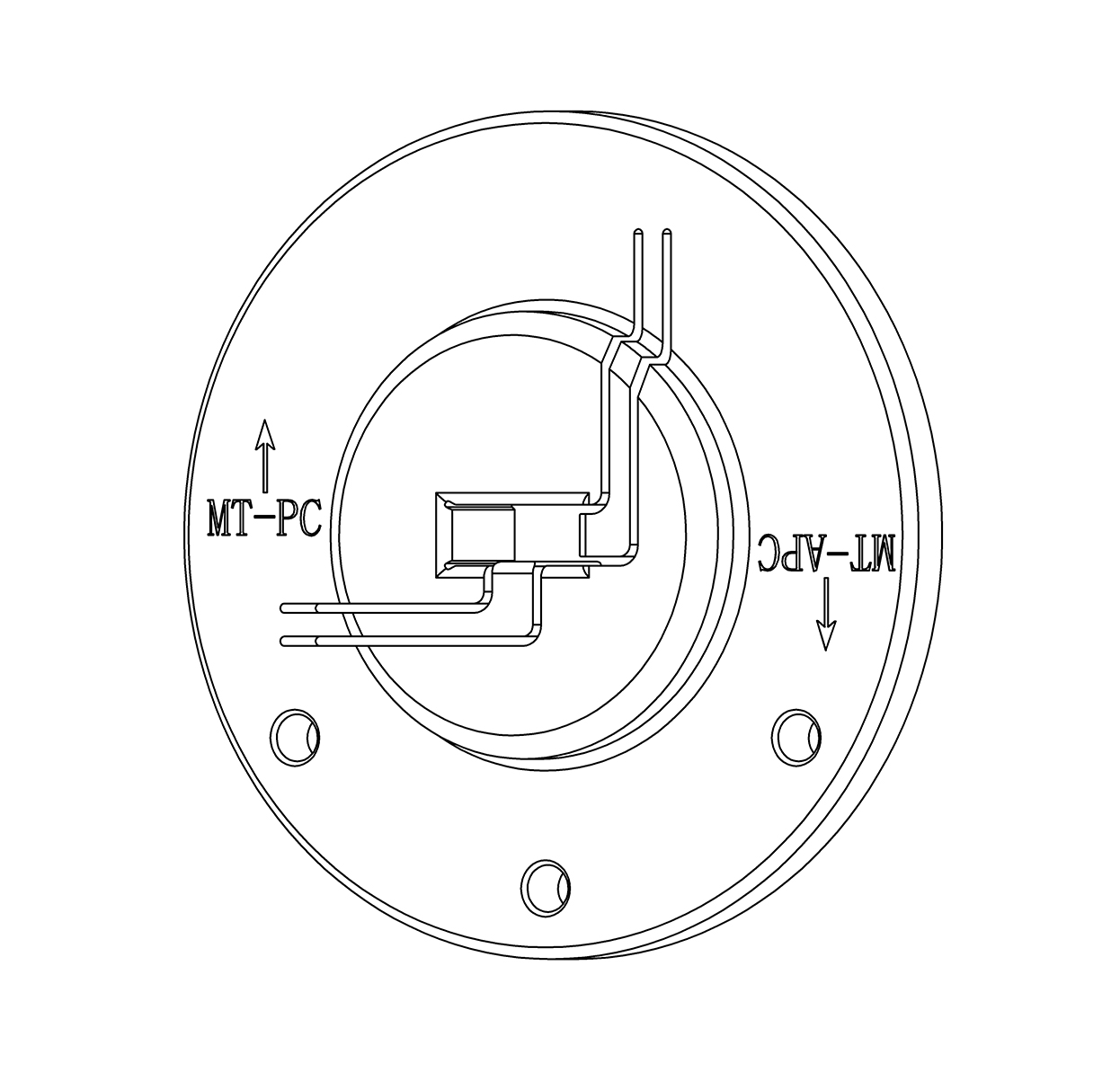

PC/APC Universal Fixture
-
A single fixture supports the inspection of both PC and APC fiber optic connectors, simplifying the operation process and improving inspection efficiency.

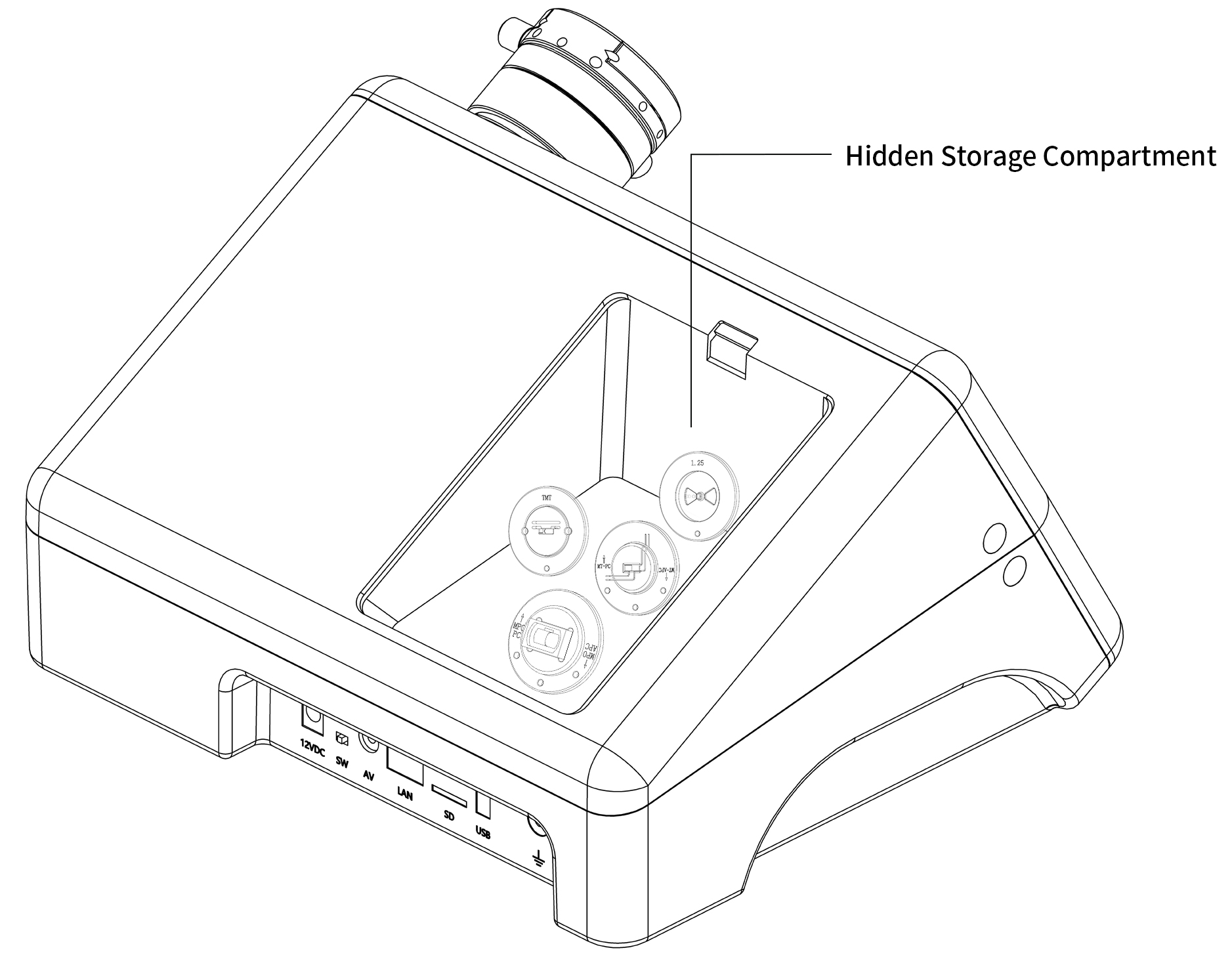

Hidden Storage Compartment
-
A concealed storage compartment is located above the instrument, providing space for various fixtures, cleaning supplies, and other accessories. This allows for centralized storage of accessories, reduces the risk of losing parts, and keeps the work surface tidier.
Product Specifications
Each set of numbers represents our commitment to professionalism and integrity.
| Model |
WKFI-M400
|
WKFI-M200
|
WKFI-M200
|
WKFI-M400
|
| Significant digits |
400X
|
200X
|
200X
|
400X
|
| X and Y Axis Adjustment |
Yes
|
Yes
|
Yes
|
Yes
|
| Applicable Products |
Single- and Multicore Fiber Optic Patch Cords and Transceivers
|
Single- and Multicore Fiber Optic Patch Cords and Transceivers
|
Optical modules, optical transceivers
|
Multi-fiber patch cord (male & female connectors)
|
| Image Input and Output Formats |
Analog PAL
|
|||
| CCD spatial resolution |
1/3-inch, 625 lines
|
|||
| Image output port |
RCA
|
|||
| Image Input Port |
RCA
|
|||
| Focusing Mode |
Manual
|
|||
| Power consumption |
3W
|
|||
| Operating temperature |
+10℃~+50℃
|
|||
| Storage temperature |
0℃~+55℃
|
|||
| Display |
8"TFT1024*768PIX
|
|||
| Power Supply |
DC12
|
|||
| Volume |
260mm*230mm*158mm
|
|||
| Weight |
1.5kg
|
|||
