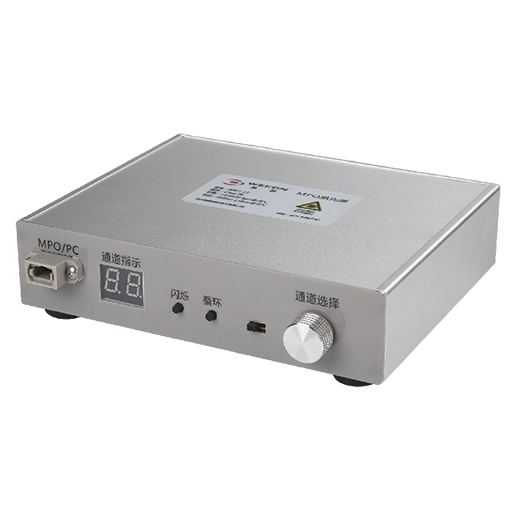

WKLT Multi-Channel Red Light Fibre Break Detector

Designed to inspect fiber ports in single-mode and multi-mode modules, or to detect defects in MPO arrays. It emits a red visible laser through the optical cable; if there is a break or defect in the fiber, the light is refracted, creating a bright halo around the fault area. The laser diode output can be switched from all fibers to each individual fiber simultaneously or sequentially in either continuous-wave or flashing mode to produce different visual effects.

Home > Products > WKLT Multi-Channel Red Light Fibre Break Detector

Features

Advantages 维勘精仪官方网站建设

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

A 650nm red laser visible to the naked eye
02

Operating distance up to 3 km (single-mode fiber)
03

You can check all Fibre Channel ports at once or select individual ports
04

High-efficiency laser driver circuit with stable laser output
05

Comes with a rechargeable battery for portable use
06

The USB port allows communication with a computer or an automation system
07

Microcontroller-based control; customers can customize features to suit their needs
08

Fibre Channel: 12-port or 16-port

Intuitive and simple control buttons and interfaces

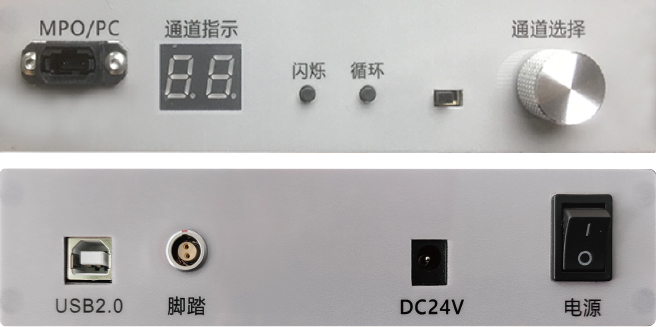

Channel Indication: 0 indicates all channels off; 1–12 (16) indicates the currently lit channel; 88 indicates all channels on Flash Button: Toggles between all channels off and all channels on; pause time is 0.5 seconds (adjustable) Cycle Button: Cycles through 0, 1–12 (16), and 88; pause time is 0.5 seconds (adjustable) DIP Switch: For the 16-channel model, this allows switching between 12-channel and 16-channel modes Channel Selection: Quickly switch channels by rotating the knob USB 2.0: Connects to a computer to control the instrument via software commands DC 24V: Provides operating power and charges the internal lithium battery; portable use is possible when the battery is charged Power Switch: Allows complete shutdown of instrument operation and charging to ensure safe use and storage Microcontroller-based control; customers can customize personalized functions Fiber Optic Channels: 12-core or 16-core

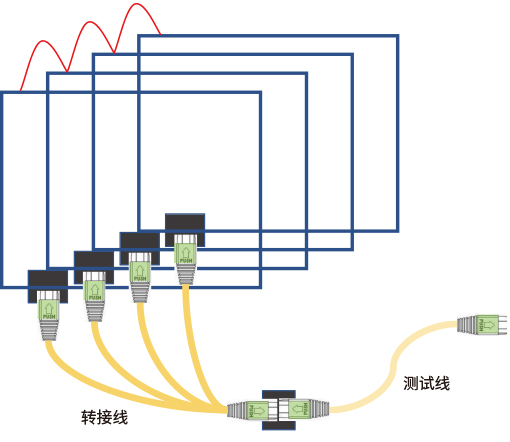

Cascade to add more channels

Unlimited channel expansion Shared power supply Shared footswitch Shared knob

Intuitive and simple operation buttons and interfaces

Channel indication: O represents all off,1-12 (16) represents the current lit channel, and 88 represents all on. Flashing button: switches between full off and full on, with a pause time of o.5 seconds(modifiable). Cycle button: Cycle between 0, 1-12 (16) , 88 , with a pause time of 0.5 seconds(modifiable). Dip switch: when the model is 16 channels,it can be switched between 12 channels and 16 channels Channel selection: Quickly switch channels by rotating the knob. USB 2.0: Can be connected to a computer and controled by sending corresponding instructions through a program. DC 24V: Provides working power supply, which can also be portable when charged.

More channels

Share the same working power supply. Share the same foot pedal. Share the same knob.

Intuitive and simple operation buttons and interfaces More channels

Parameters	Indicators
Laser Class	Class 2B
wavelength	650nm±10nm@25°C
bandwidth	＜10nm
Output power	>0.4 mW at 25°C in a 9-micron fiber
Operating temperature	0°C~50°C
Dimensions	165mm（W),150mm（D),40mm（H)
