MPO Polarity Tester

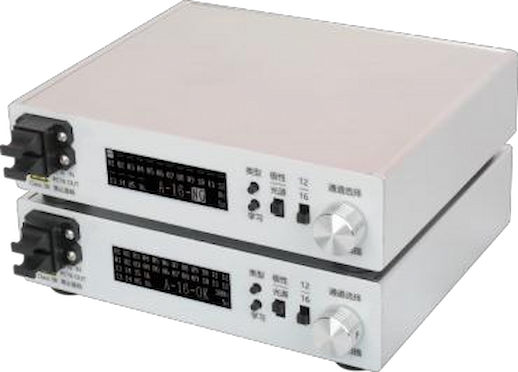

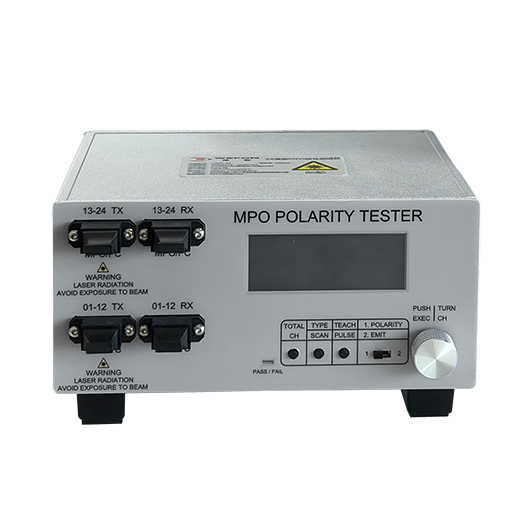

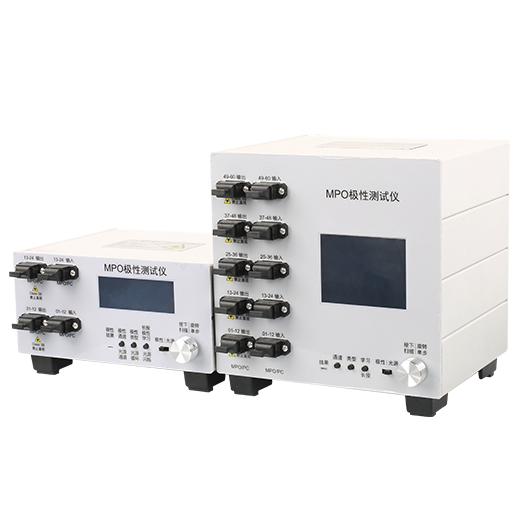

The MPO/MTP Polarity Tester is an intelligent device designed for polarity verification and continuity testing during the production of MPO/MTP cables. With its one-button automatic scanning function, it quickly identifies cable continuity, polarity (pinout), alarms, and error analysis. The WKMU920 provides a fast, accurate, and efficient solution for MPO/MTP cable production, semi-finished product testing, and finished product inspection.

Product Applications

Used for detecting fiber breakage in light-transmitting polarities in optical connectors such as MT, MPO, and FA, as well as in optical components.

Home > Products > MPO Polarity Tester

Features

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

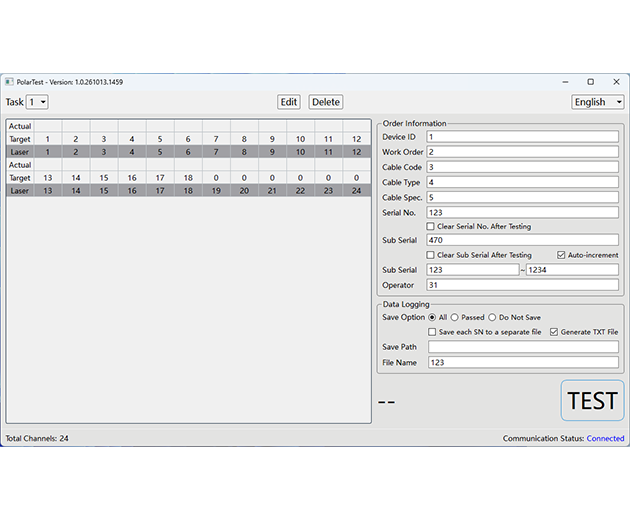

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

Features step-by-step testing and one-click testing modes
02

Features flashing, cycling, constant-on, and manual switch modes; includes a foot switch activation function
03

Supports a wide voltage range of 12–24 VDC
04

Supports standard A, B, and C polarities, as well as self-learning polarity. Supports customizing parameters via a computer.
05

Supports voice announcements of test results
06

Supports automation applications
07

Supports USB, RS232, and RS485 protocols
08

Built-in high-capacity lithium battery for portable use; can be charged via a computer or power bank

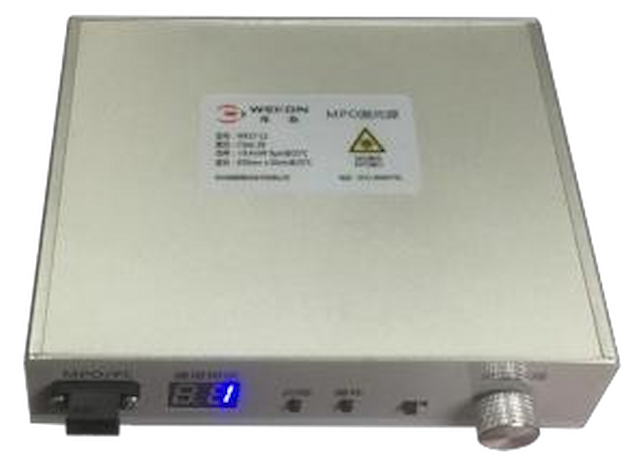

MPO laser source

The MPO laser source is designed to inspect fiber ports in single-mode and multi-mode modules or to detect defects in MPO arrays. It emits a red visible laser beam through the fiber optic cable; if there is a break or defect in the fiber, the light is refracted, creating a bright halo around the fault area. The laser diode output can be switched from all fibers to each individual fiber simultaneously or sequentially in either continuous-wave or flashing modes to produce different visual effects.

Visible 650 nm red laser.
Operating range up to 3 km (single-mode fiber).
Allows simultaneous inspection of all fiber channels (in continuous-wave or pulsed mode) or selection of individual channels.
Efficient laser drive circuit ensures stable laser power.
Equipped with a rechargeable battery for portable use.
USB interface enables communication with computers or automated systems via microcontroller control.

MPO laser source

Product Specifications

Each set of numbers represents our commitment to professionalism and integrity.

Laser Class	Class2B
wavelength	650nm±10nm@25℃
bandwidth	＜10nm
Output power	>0.4 mW at 25°C in a 9-micron fiber
Operating temperature	0℃~50℃
Dimensions	165mm150mm40mm
