MT High-Precision Grinding Machine

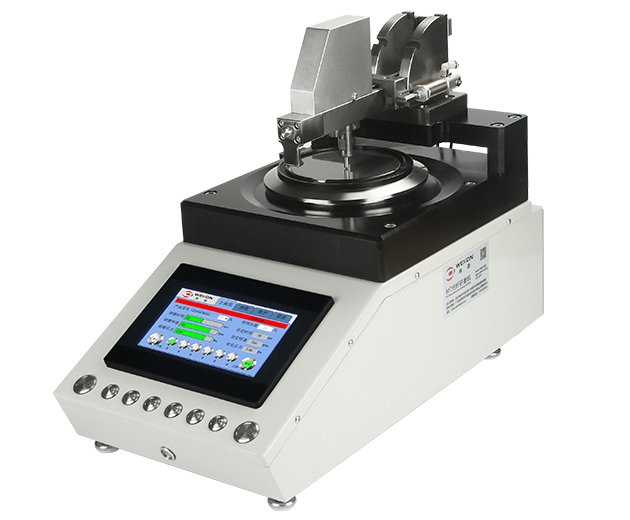

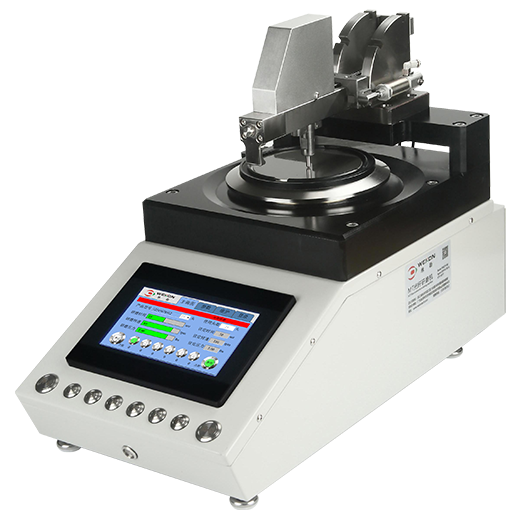

The WKFI-MT3 is a high-precision grinding machine independently developed by Weikan, based on the principle of central pressure. Drawing on years of expertise in mechanical design, it is precision-machined using components from internationally renowned brands and high-quality imported tool steel. Featuring high precision, exceptional durability, and a high yield rate, it is the ideal choice for grinding in the production of MT/MPO products.

Case Studies

Tianfu, Onn, Zhongtian, AVIC, Yongding, Galan, Guangzhuo, Tengjing, Yusheng, Xiangtong, etc.

Home > Products > MT High-Precision Grinding Machine

Features

Advantages 维勘精仪官方网站建设

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

Independently developed, premium quality , reliable pre-sales and after-sales technical support.
02

Independently developed, premium quality , reliable pre-sales and post-sales support 7-inch touchscreen, mechanical buttons, and proprietary software —simple and easy to use.
03

Machined parts are made from imported high-strength die steel , ensuring long-lasting durability.
04

All core components are from internationally renowned brands, ensuring reliable quality.
05

High-precision machining and precision assembly
06

Random includes grinding process parameters and recommended consumables,
07

Stores 32 grinding processes, with individual settings for grinding parameters such as speed, pressure, runtime, and acceleration time.
08

Strict grinding, debugging, and testing are conducted before shipment, with a 3D pass rate approaching 100%.

Product Advantages

Leveraging advanced algorithms and extensive databases, we provide reliable and in-depth testing and validation.

Extensive software features

Operating and setting parameters are displayed simultaneously in both numerical and graphical formats. Operation can be paused; upon restarting, the system resumes from the point where it left off. Pressure can be adjusted according to the ratio of the number of active heads to the total number of product heads.

Process Parameter Storage

Store 30 sets of grinding process parameters, with separate settings for time, speed, and pressure. Acceleration time can be set for pressure and the motor to ensure a smooth start and protect the grinding paper. Compensation time can also be set for each process to offset the decrease in cutting force of the grinding paper (or liquid). Each set of parameters can be named and saved individually.

Mechanical Design for Field Applications

The power cord is directly connected and sealed at the exit point to prevent water ingress and short circuits. Filtration and pressure-reducing pretreatment have been added to the user’s gas supply. The filter, pressure-reducing valve, and pressure regulator are housed within an isolated chamber, which is both waterproof and allows for quick maintenance.

Precision fixtures

Made from high-quality imported steel to ensure long-term, stable grinding performance. The clamping system is proven and reliable, compatible with mainstream grinding machines. Capable of grinding 24 MT sockets in a single pass, with a 3D interference pass rate of nearly 100% (br), significantly reducing consumable costs.

Strict quality control and final inspection

With a dedicated grinding laboratory and team of engineers, every piece of equipment undergoes rigorous factory testing and validation to ensure a 100% 3D yield rate.

Precision fixtures

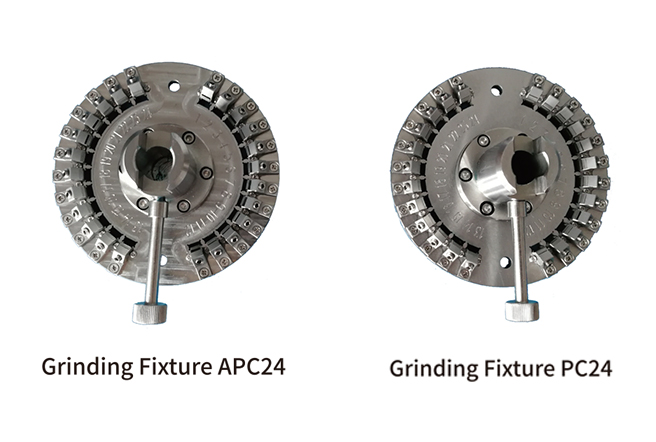

Made from high-quality imported steel to ensure long term, stable grinding performance.The clamping system is proven and reliable, and is compatible with mainstream grinding machines.Capable of grinding 24 MT inserts in a single pass, with a 3D interference pass rate approaching 100%, significantly reducing consumable costs.

Password protection

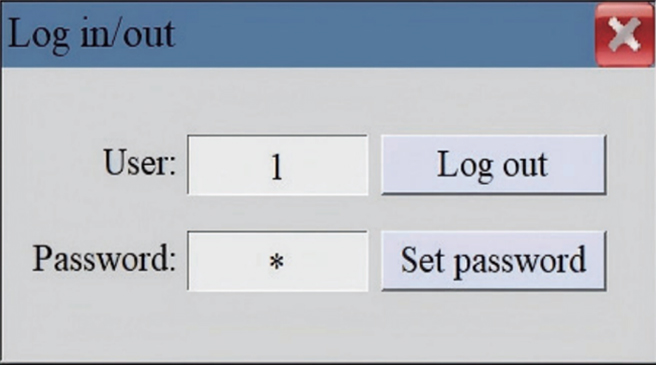

To prevent normal grinding parameters from being mistakenly modified, the software has 8 built-in protection passwords. Engineers can modify grinding parameters after logging in.

Software function

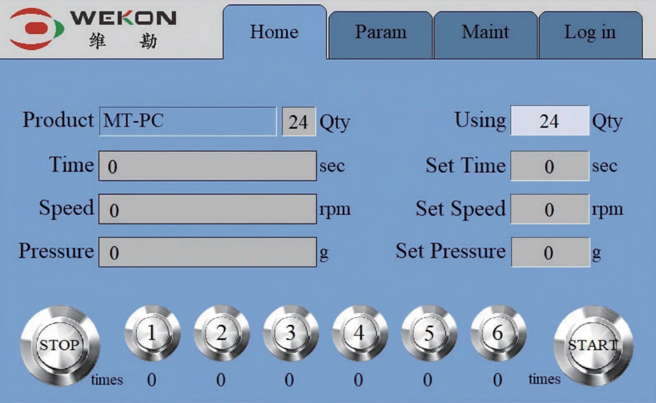

The operation and setting parameters are displayed both numerically and graphically. During operation, it is possible to pause and resume the previous time after restarting. The pressure can be adjusted according to the ratio of the number of users to the number of products used.

Process parameter storage

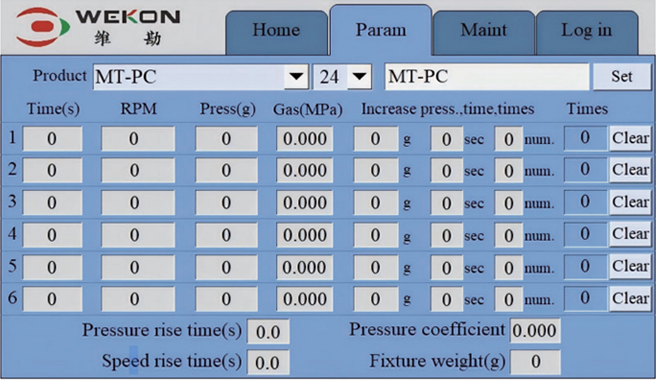

Store 30 sets of grinding process parameters, set time, speed,and pressure separately. The pressure and motor can be set with an acceleration time to smoothly start and protect the grinding paper.Each process can also set compensation time to offset the decrease in cutting force of the grinding paper(liquid). Each group of parameters can be named and saved separately.

Mechanical design based on on-site use

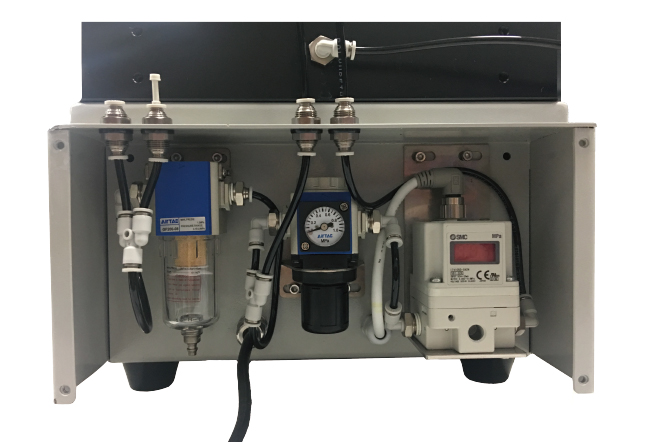

The power cord is directly connected and sealed out to prevent water ingress and short circuit.Increase filtration and decompression pretreatment of user gas sources. The filter, pressure reducing valve, and pressure regulating valve are hidden in the isolation chamber, which is waterproof and can be quickly repaired.

Accurate pressure

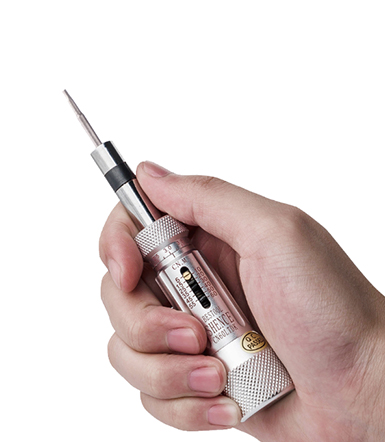

By using a preset torque wrench, the torque value can be accurately set. After reaching the torque value, there will bean idle slip prompt to keep the torque constant and not damage all MTs while ensuring consistent quality.

Precision fixtures Password protection Software function Process parameter storage Mechanical design based on on-site use Accurate pressure

Performance Specifications

Parameters	Indicators
Acceleration time	0-9s
Grinding time	0-900s
Operating pressure	0.6-0.9MPa
Operating speed	0-200r/min
Dimensions	550W275D390H(mm)
Rated voltage	220VAC
Rated power	240W
Net weight of the unit	36KG
