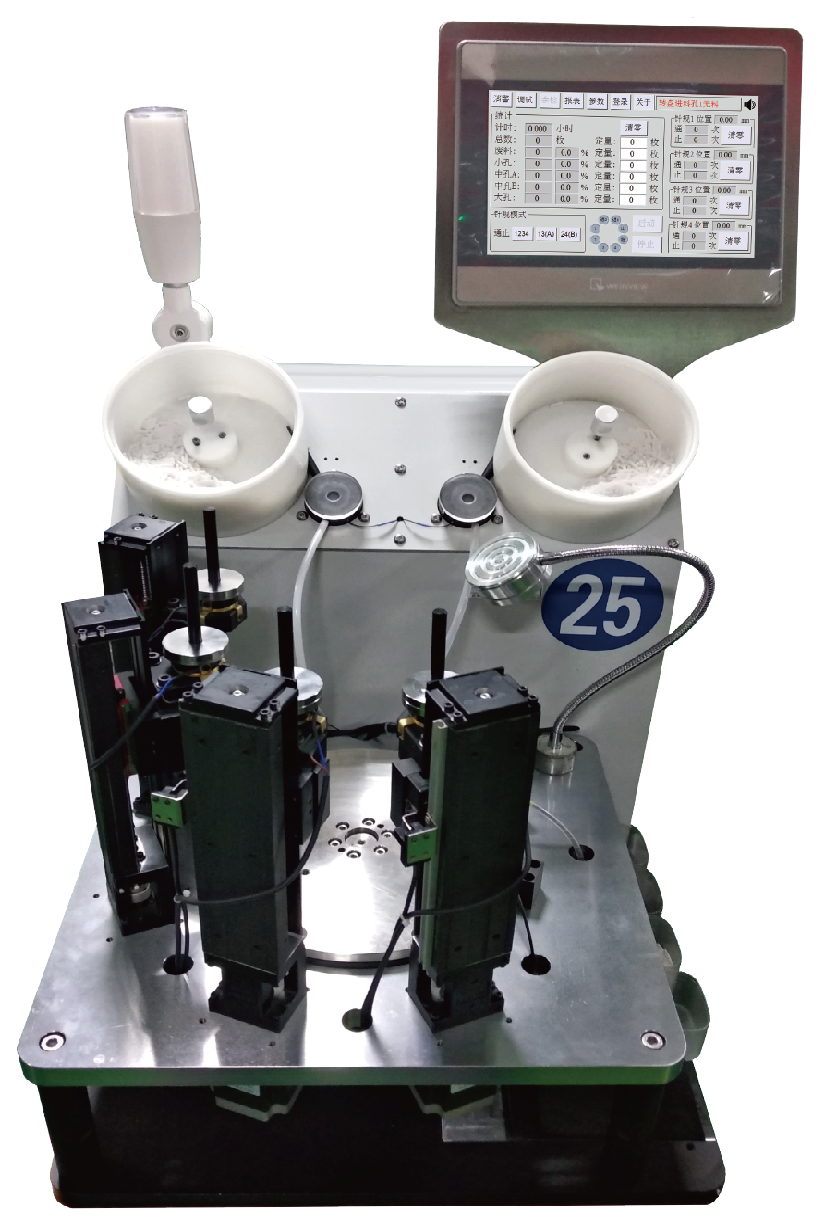

WKID Automatic Sorting Machine for Ceramic Inserts by Inner Diameter

Precision-grade steel wire, fully stepper-motor-driven motion, precisely weighted scales, fully automated industrial control, ultra-quiet core-filling hopper, and a fully touchscreen HMI

Home > Products > WKID Automatic Sorting Machine for Ceramic Inserts by Inner Diameter

Features

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

The method uses the user's existing steel wire and offers higher accuracy and reproducibility than image-based detection.
02

It does not use compressed air and operates silently, enhancing the operator's experience.
03

Designed for desktop use, its compact size allows operators to monitor more machines.
04

Wide range of modes: one-way on/off, two-way on/off, on-then-off, off-then-on, and four-position single-way.
05

With dual hoppers and dual good-product bins, this machine can sort two different inner-diameter specifications on a single unit.
06

Avoid contact with metal to prevent contamination of the insert; do not use a vibrating feeder to prevent mechanical damage to the insert.
07

Weights are a universal standard; compared to springs and pressure sensors, they are easier to calibrate in bulk and better suited to different bore size requirements.
08

All critical electrical components are selected from industrial automation products widely used internationally, which significantly extends the equipment's mean time between failures.
09

Users can purchase spare parts on their own, without being restricted by an exclusive product supply agreement.

Steel wire with precise specifications

Weights of precise mass

Ultra-Quiet Plug-In Hopper

Full-step motor motion

Fully Automated Industrial Control

Full-touch human-machine interface

Steel wire with precise specifications Weights of precise mass Ultra-Quiet Plug-In Hopper Full-step motor motion Fully Automated Industrial Control Full-touch human-machine interface

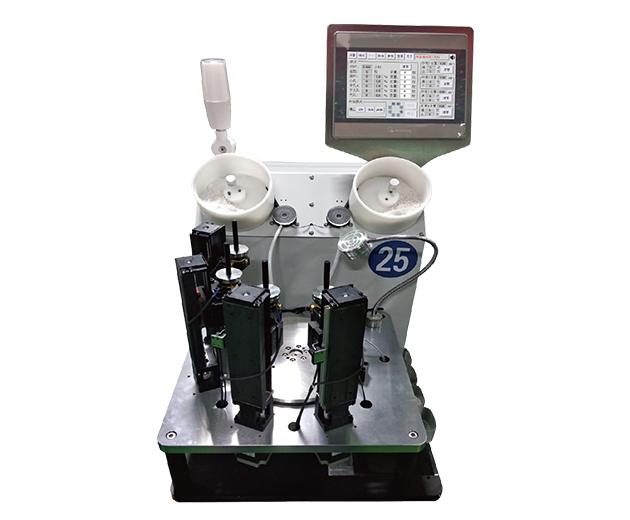

Product Features

Performance Specifications

Specifications and Models	WKID-SC	SC Standard Model, suitable for use in cleanrooms
	WKID-LC	LC Standard Model, suitable for use in cleanrooms
	WKID-SC-A	SC Standard Model, suitable for use in cleanrooms
	WKID-LC-A	LC Standard Model, suitable for use in cleanrooms
Performance Specifications	Sorting efficiency	1,000–3,000 pieces per hour (depending on settings)
	Needle replacement interval	>1 hour
	Time required to change needles	<1 minute
	False positive rate for good products	＜1/10000
	Rated voltage	220VAC
	Rated power	700W
