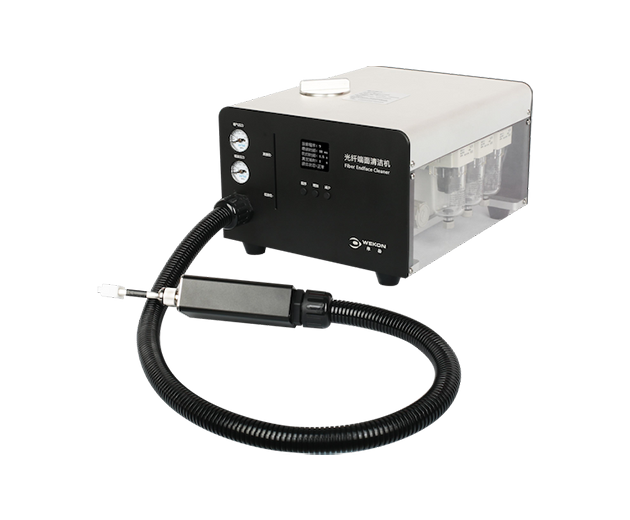

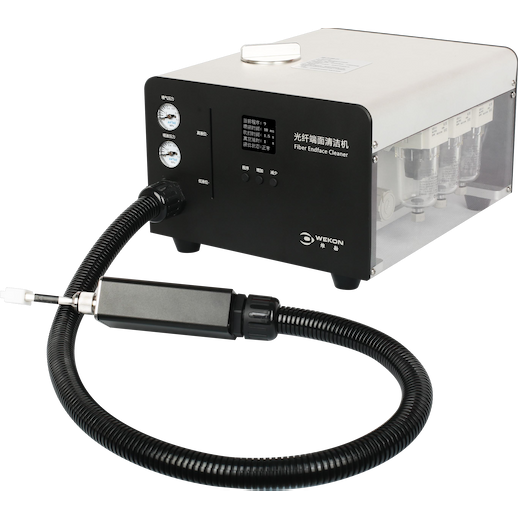

WKFC-MT Fiber End-Face Cleaner

The WKFC-MT is a high-efficiency, cost-effective, and highly compatible fiber optic connector cleaner recently developed in-house by Weikan Precision Instruments. Equipped with an advanced air filtration system and hydraulic and pneumatic adjustment mechanisms, it can quickly and efficiently clean the end faces of virtually all fiber optic connectors, addressing the challenge of cleaning various connector end faces and ensuring foreign-free connections. This achieves optical performance characterized by low insertion loss and high return loss.

Product Applications

Widely used for end-face cleaning in the manufacturing processes of MTs, MPOs, TOSAs/ROSAs, optical modules, and other components.

Home > Products > WKFC-MT Fiber End-Face Cleaner

Features

Advantages 维勘精仪官方网站建设

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

Equipped with an LCD display that supports real-time display of liquid spray, air spray, and suction times, as well as liquid level alarm information.
02

It features function buttons for adjusting fluid flow, pressure, and timing, allowing for precise setting of spray, air blow, and suction times.
03

It features 9 pre-programmed cleaning cycles that users can access quickly. Additional cycles can also be customized as needed.
04

Equipped with a precision pressure gauge that displays liquid and gas spray pressure in real time, featuring a quick-adjustment knob.
05

Equipped with a liquid level display for quick assessment of remaining solution volume, with support for dynamic high and low liquid level alarms.
06

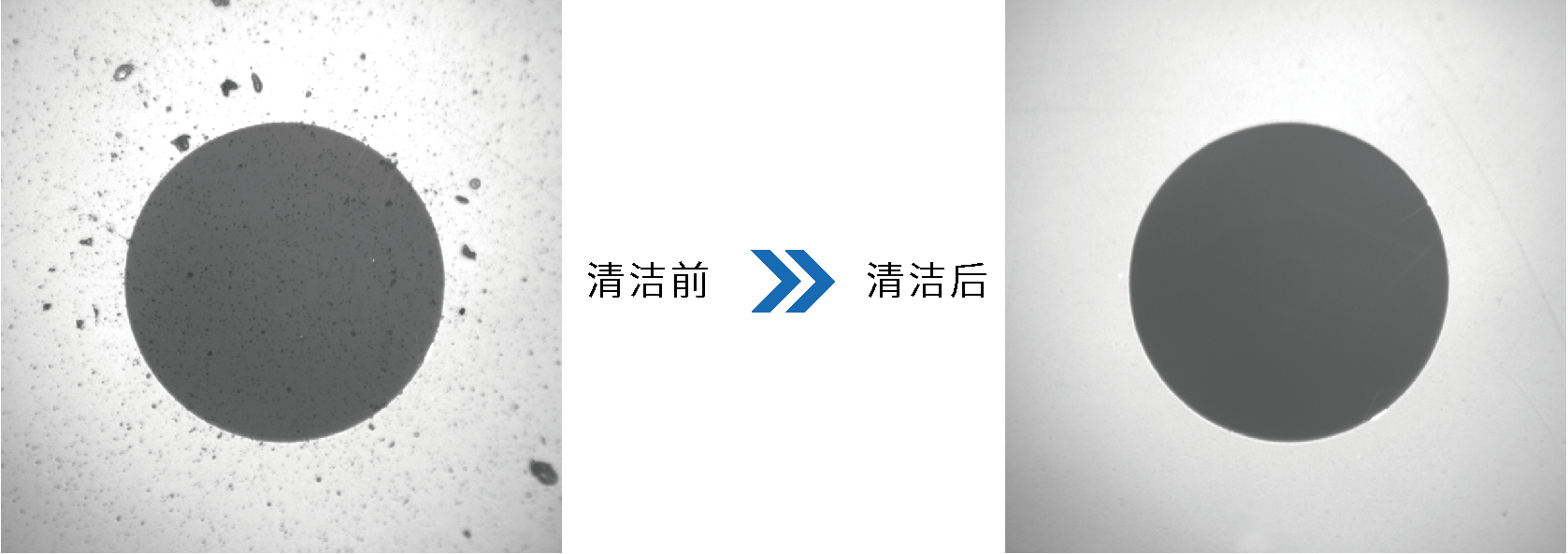

High-precision micro-mist separation system ensures the injection of dust-free gas, resulting in a clean and smooth end face finish.
07

Separate channels for spraying (cleaning solution + dust-free gas) and suction (waste liquid and exhaust gas).

Product Advantages

High-Precision Filtration System

External hydraulic and pneumatic adjustment device

Users can freely program cleaning routines

A variety of cleaning options

Equipped with an automated communication interface

Communication protocols can be customized for users

Automated Scaling

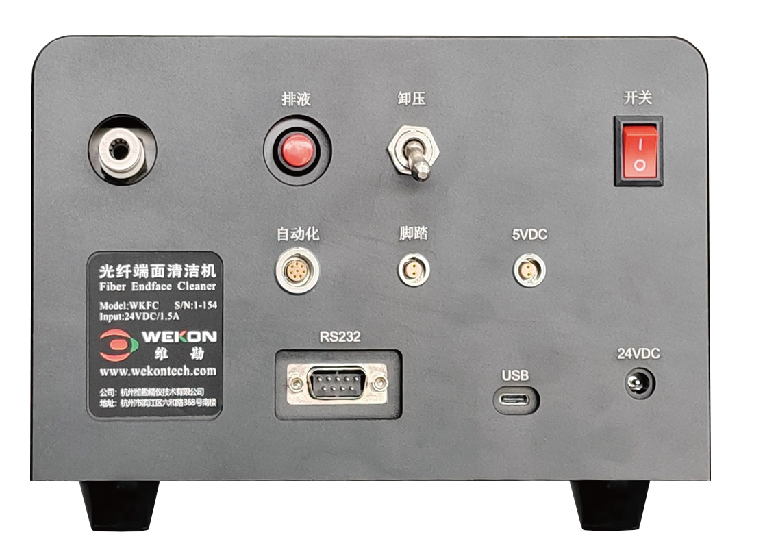

Equipped with multiple communication interfaces: USB, RS232, and 8-pin push-pull quick-connect. Custom communication protocols can be developed for customers, and the device can be integrated into automation systems. Automation Expansion

User-adjustable

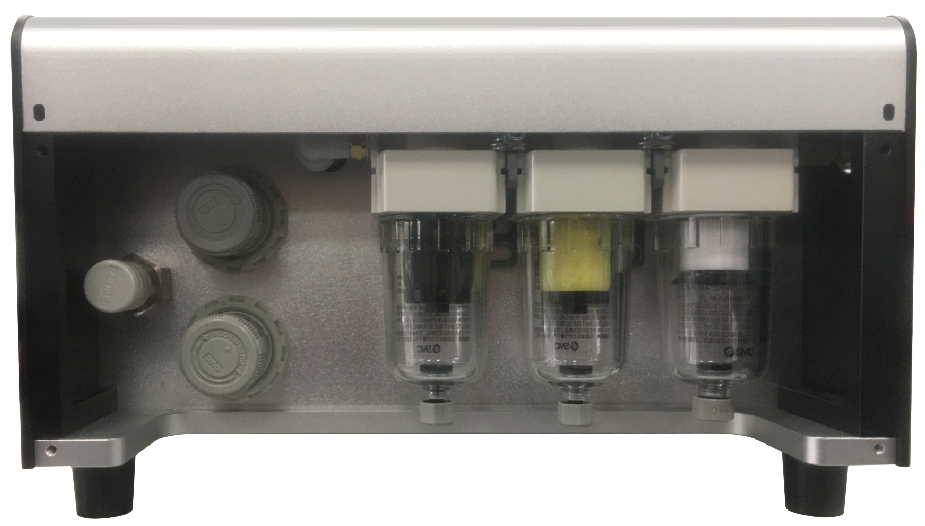

The air pressure and liquid pressure knobs are located on the side, while the pressure gauge is positioned at the front, ensuring user-friendly operation. Multi-stage precision filters ensure a clean air supply and allow for easy visual inspection and maintenance. Users can adjust

User-programmable

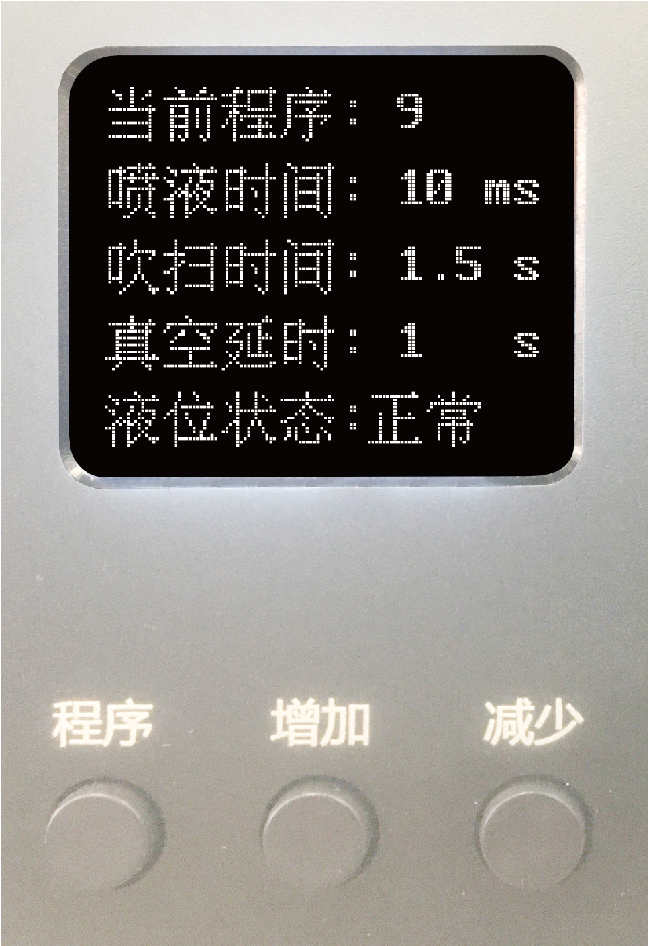

The user-programmable LCD screen displays program parameters and status in real time. Parameters can be modified at any time using button combinations to accommodate different application scenarios for various customers. The system saves 9 sets of application parameters by default, but more can be customized. User-programmable

Multi-functional

In addition to its cleaning function, the device also serves as an air gun. When the power button on the handle is held down, the device can be used as an air gun. The clean compressed air expands the range of applications and enhances product quality. Multi-functional

One-click launch

In addition to automatic dry-contact activation and software-controlled activation, the instrument also features two external activation methods. Button activation: Uses a tactile switch that is highly responsive and has a long service life. Foot switch activation: Uses a push-pull quick-connect connector that ensures a secure connection and is easy to install and remove.

Automated Scaling User-adjustable User-programmable Multi-functional One-click launch

Performance Specifications

Parameters	Indicators
Air supply	Dry, clean compressed air
Supply pressure	0.5~1.0MPa
Operating temperature	+5~+35°C
Storage temperature	-10 to +55°C, when draining the liquid
Power supply	24VDC/1A
Host Dimensions	150W,270D,170H(mm)
