Digital End-Face Inspector for Multi-Core Fiber Optics

This instrument uses a high-intensity light source to illuminate the end faces of multiple optical fibers. Any spots or scratches on the end faces are magnified by the microscopic optical system, digitized by a camera, and ultimately displayed to the user on a computer monitor. The included image analysis software can accurately identify even the slightest spots and scratches in the image. The precision programmable motor enables rapid positioning, allowing for automatic inspection of up to 72 MT fiber end faces.

Product Applications

Widely used for end-face inspection in the manufacturing processes of MTs, MPOs, optical modules, and other components.

Home > Products > Digital End-Face Inspector for Multi-Core Fiber Optics

Features

Configuration 维勘精仪官方网站建设

Specifications 维勘精仪官方网站建设

Downloads

Service

Product Features

We define product performance through core technologies to meet the demanding requirements of industrial testing.

01

Equipped with a large-format camera and an ultra-high-definition optical microscope digital imaging system, it automatically captures and displays fiber cores in high detail.
02

Equipped with a 3-axis motion system, it supports motion and focusing for arrays of up to 72 cores based on the MT12 and MT16.
03

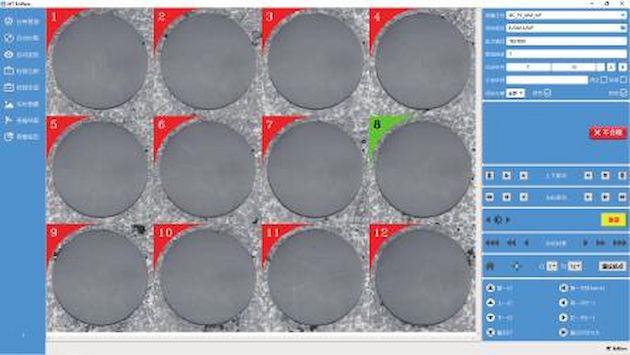

Advanced image recognition algorithms enable automatic positioning and scanning of fiber end faces, as well as real-time detection.
04

“All,” “Save All Reports,” and “Save Passed Reports”—users can choose the option that best suits their needs.
05

A separate report is generated after testing for easy reference by engineers or clients.
06

Use HTML format to avoid copyright disputes with Microsoft Office.

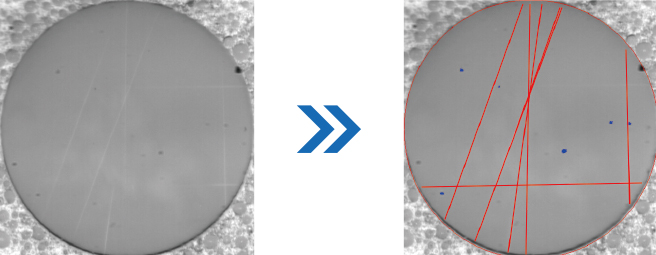

Automatic analysis and judgment

By using advanced image recognition algorithms, automatic positioning,focusing, analysis,and judgment of the fiber end face can be achieved without manual intervention.

Automatic analysis and judgment

Product Specifications

Each set of numbers represents our commitment to professionalism and integrity.

Model	WKFI-M400	WKFI-M200	WKFI-M200	WKFI-M400
Significant digits	400X	200X	200X	400X
X and Y Axis Adjustment	Yes	Yes	Yes	Yes
Applicable Products	Single- and Multicore Fiber Optic Patch Cords and Transceivers	Single- and Multicore Fiber Optic Patch Cords and Transceivers	Optical modules, optical transceivers	Multi-fiber patch cord (male & female connectors)
Image Input and Output Formats	Simulation P
CCD spatial resolution	1/3-inch, 625 lines
Image output port	RCA
Focusing Mode	Manual
Power consumption	3W
Operating temperature	+10℃~+50℃
Storage temperature	0℃~+55℃
Display	8"TFT1024*768PIX
Power Supply	DC12
Volume	260mm230mm158mm
Weight	1.5kg
