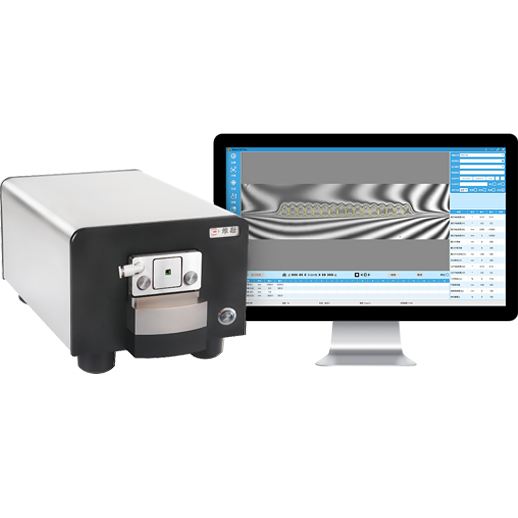

FA Fiber End-Face 3D Interferometer WKFI-FA
This product is a high-precision, non-contact 3D interferometer for fiber optic end-faces. It uses multiple light sources for scanning measurements, accurately reproducing the geometric morphology of the fiber end-face and precisely calculating various technical parameters. It is also compatible with the measurement of fiber optic connectors such as FC, SC, ST, LC, MU, E2000, MT, MPO, and MTP. We also provide professional, customized 3D fiber end-face testing solutions for our customers.

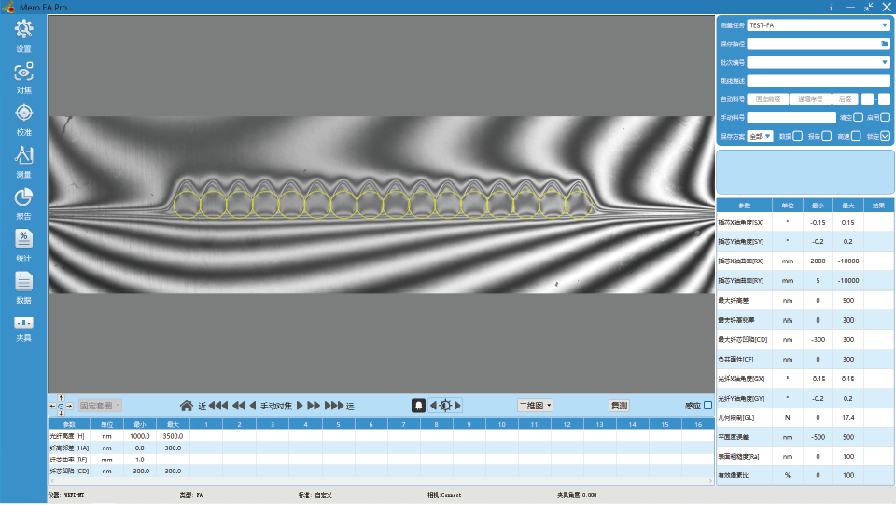

Product Features
We define product performance through core technologies to meet the demanding requirements of industrial testing.
Product Advantages
Leveraging advanced algorithms and extensive databases, we provide reliable and in-depth testing and validation.
Customizable fixtures
With a field of view of 4.4 × 3.3 mm, fixtures can be flexibly customized to meet the specific product specifications of our customers.
Touch-activated start
Equipped with a touch-sensitive switch, measurement can be initiated with a light touch—no need to press keys or click on software—maximizing ease of use for employees.
Active Dust Protection for Optical Systems
To address the issue of optical systems being susceptible to dust, an innovative active dust-proofing feature has been developed, which significantly extends maintenance intervals.
Autofocus, automatic end face profile recognition
Equipped with an advanced, high-efficiency autofocus system, it responds quickly to locate the sharpest interference fringes, automatically identifies the end face profile, and begins scanning from the optimal position, completing the measurement without the need for any hardware adjustments.
Automatic Calibration and Chip Storage
Equipped with an automatic calibration system, it automatically adjusts the X and Y reference planes. Calibration data is written to the fixture chip in real time; when switching to a different fixture, the system automatically reads the chip values and adjusts accordingly.
Design of a Vacuum Suction Fixture
-
Given the nature of FA glass, the fixture features a vacuum-suction design, ensuring that the FA is protected from cosmetic damage and measurement interference caused by traditional clamping fixtures. Additionally, the fixture itself incorporates a high-precision calibration surface, eliminating the need for traditional calibration blocks and ensuring the accuracy of measurement results.

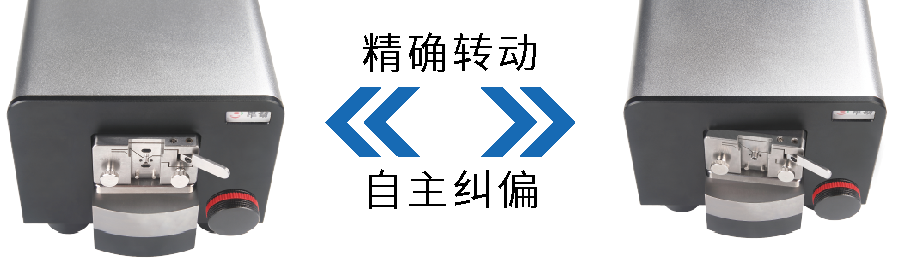

Rotation at any APC angle between 0 and 12 degrees
-
Equipped with a high-precision angle feedback system (0.0027°), it maximizes APC angle measurement accuracy while meeting the special angle measurement requirements of non-standard connectors. It rotates to precise angles and can automatically correct for deviations and return to normal operation when the angle is altered by external forces. It supports rotation to any APC angle between 0° and 12°.

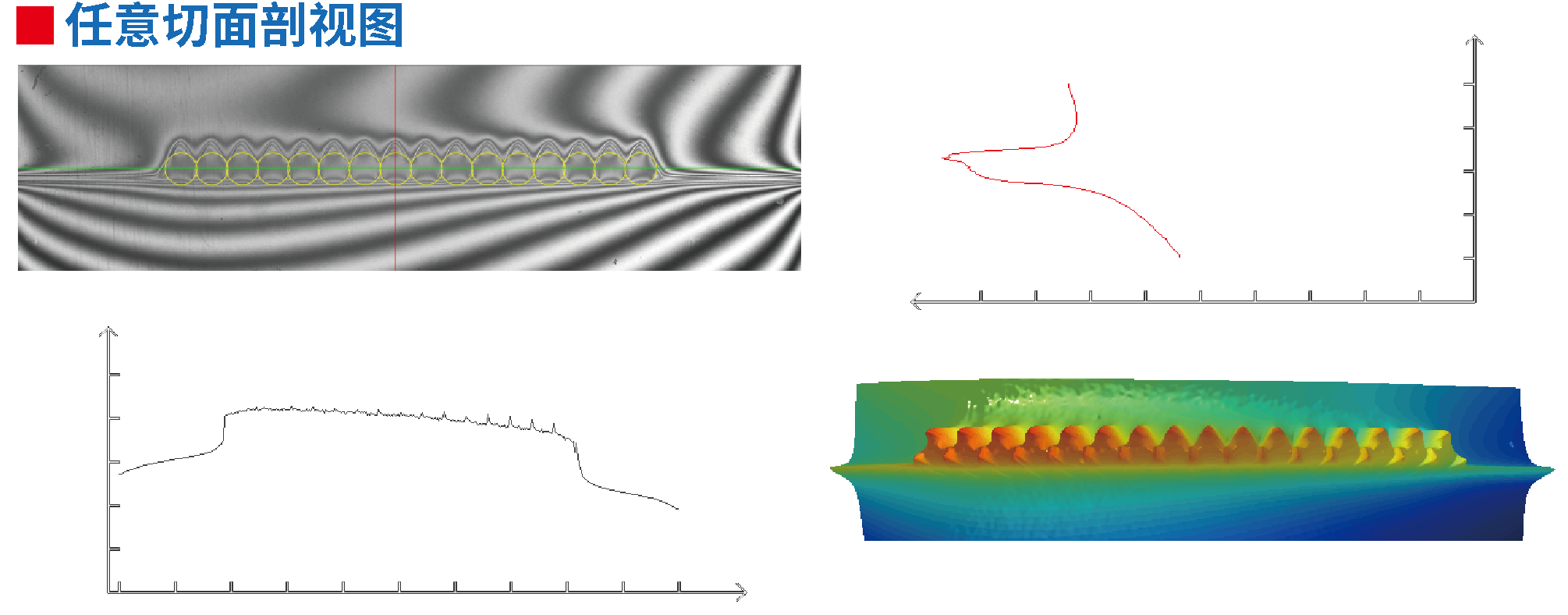

Equipped with cross-sectional views of any plane
-
Equipped with cross-sectional views of any plane

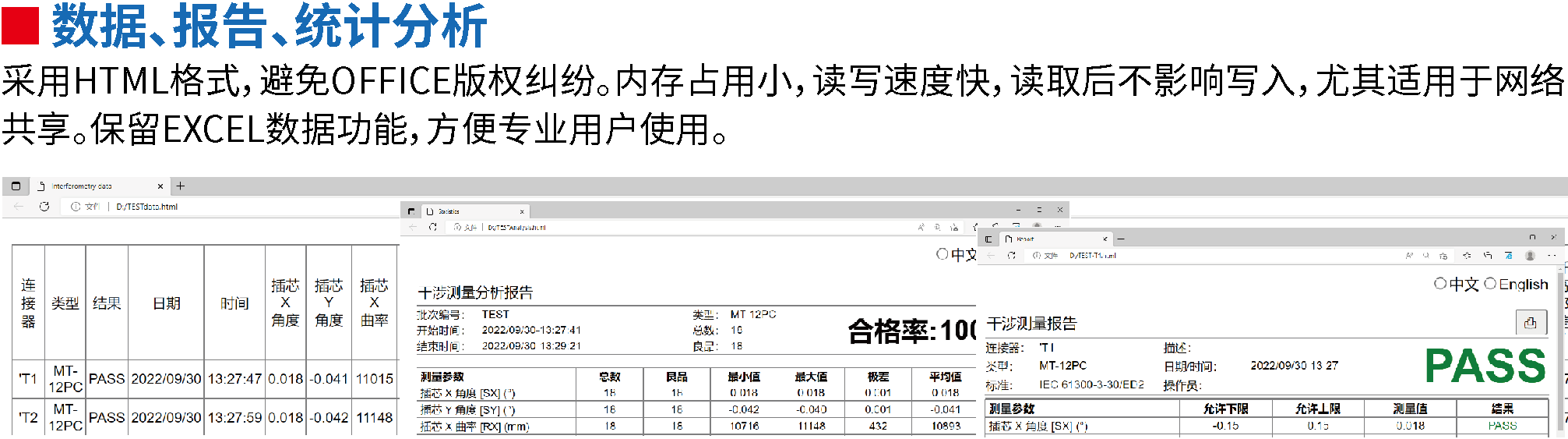

Robust data retention capabilities
-
Currently, interferometer data is primarily saved in Excel and HTML formats. While Excel offers robust data analysis capabilities, most of the software used is unlicensed. Additionally, it consumes a significant amount of storage space and operates slowly. FA test data includes numerous metrics, making it difficult to format, and the displayed data appears disorganized. This results in a poor user experience.
-
WKFI-FA supports HTML format saving and has been significantly optimized.
Its advantages are:
1. It has a small memory footprint, fast response times, and high versatility; data can be viewed on any computer with a web browser;
2. The interface is more streamlined and intuitive, making it easy to review process data, and it simultaneously generates test data analysis reports, providing a better user experience.
Performance Specifications
| Parameters | Measurement Range | Repeatability |
| radius of curvature（mm) | 3~ | ±0.3% |
| Face angle（°） | 0~12 | ±0.01 |
| Fiber height（μm） | -15~+15 | ±0.01 |
| Fiber core depression（μm） | -1~+1 | ±0.01 |
