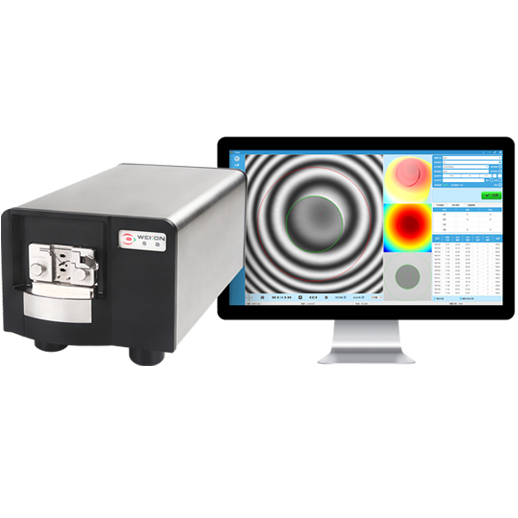

WKFI-AX Series Automatic Single-Core Fiber End-Face 3D Interferometer
This product is a high-precision, non-contact, manual 5D interferometer for single-core fiber end-face inspection, featuring both 3D interferometry and 2D end-face inspection capabilities. It uses interferometric principles to reconstruct the three-dimensional topography of the fiber end-face and calculate various technical parameters. Capable of measuring end-face parameters for fiber connectors such as SC, FC, and LC, it is an essential instrument for ensuring the transmission efficiency of fiber connectors and plays a crucial role in the fiber optic communications manufacturing industry.
Case Studies
Huawei, ZTE, Tianfu, O-Net, AVIC, Zhongtian, FiberHome, Yangtze Optical Fibre & Cable, Changxinsheng, Yongding, Galan, Guangzhuo, Shijia, Tengjing, Yusheng, etc.

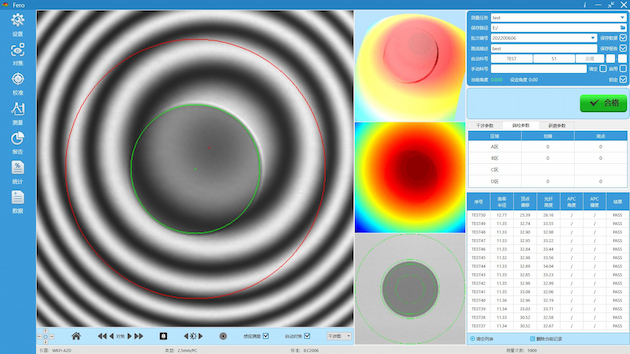

Product Features
We define product performance through core technologies to meet the demanding requirements of industrial testing.
-
01Certified by a national authoritative testing agency
-
02Brand-new optical design
-
03Fully Enclosed Optical System
-
04Brand-new fixture design solution
-
05New, extended measurement range
-
06Brand-new software interface design
-
07Simultaneous 3D Interferometry and 2D End-Face Inspection
-
08Automatic and precise adjustment of any APC angle from 0 to 12°
-
09Autofocus, Auto Calibration, Auto Center, Auto Rotation, Auto Measurement
Product Advantages
Leveraging advanced algorithms and extensive databases, we provide reliable and in-depth testing and validation.
Accurate and consistent measurement results
Calibrated by a national authoritative testing agency (the Chinese Academy of Metrology), the measurement results are more accurate and reliable.

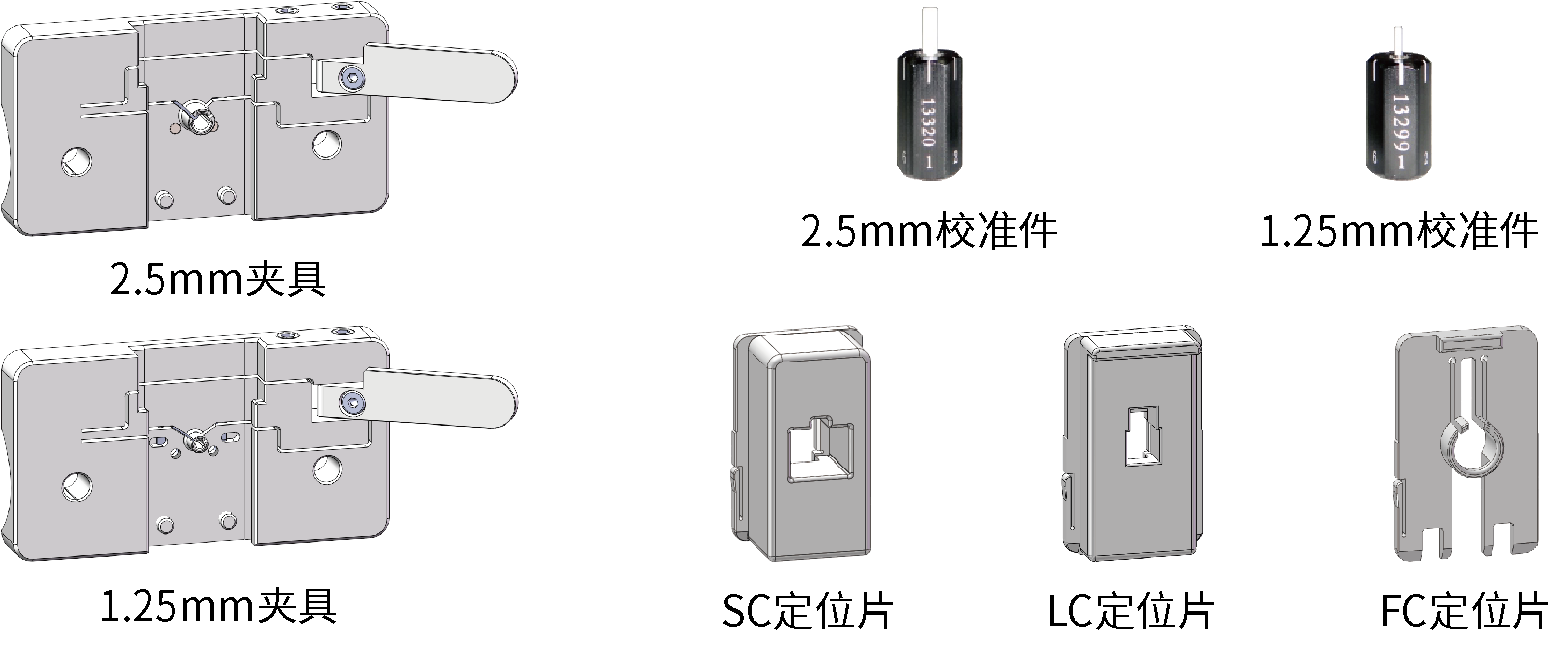

A comprehensive range of fixtures
The dual-buffer design features adaptive adjustment for both clamping and release, ensuring measurement accuracy and repeatability while significantly extending the fixture's service life. Combined with sliding positioning plates, it enables quick switching between PC and APC modes.
Autofocus (A Series), Auto Calibration (A Series), Auto Center, Auto Rotation, Auto Measurement
Equipped with an autofocus module, it automatically adjusts the interference fringes to their sharpest state within a certain range, simplifying the measurement process. Equipped with an automatic calibration module, calibration becomes simpler and faster without the need for manual adjustment of the X-axis or Y-axis reference mirrors. Equipped with an automatic sensing measurement module, measurement is triggered simply by tightening the wrench. A single measurement in standard mode takes only 0.5 seconds, while in fiber height extension mode it takes just 0.8 seconds. Simultaneous end-face analysis and 3D interferometry take only 1 second.
Auto-center
There is no need to manually locate the fiber center; simply perform a standard measurement, and the system will automatically locate it.
High-Precision Fiber Optic Length Measurement
-
High-Precision Fiber Optic Length Measurement

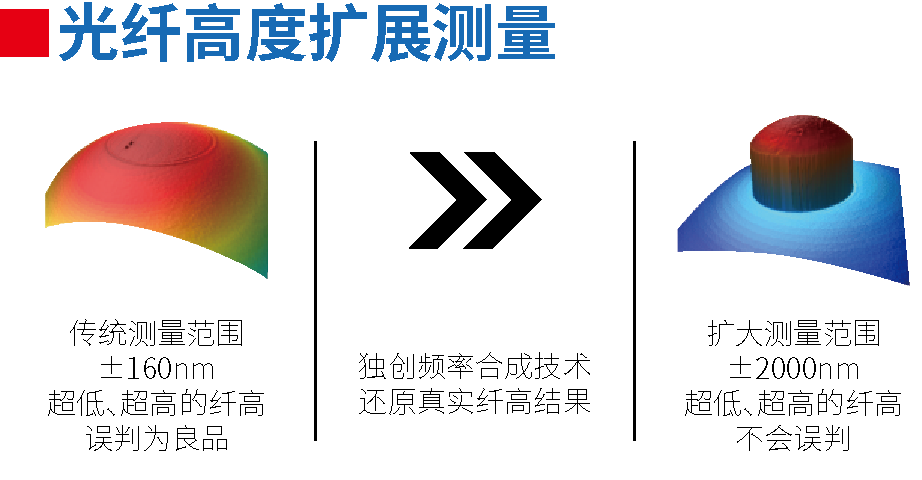

Traditional measurement range of ±160 nm: Extremely low or high fiber heights are incorrectly classified as “pass”
Proprietary frequency synthesis technology restores accurate fiber height results
Expanded measurement range of ±2000 nm: Extremely low or high fiber heights will not be misclassified
A comprehensive range of fixtures
-
The dual-buffer design features adaptive adjustment for both clamping and release, ensuring measurement accuracy and repeatability while significantly extending the fixture's service life. Combined with sliding positioning plates, it enables quick switching between PC and APC modes.

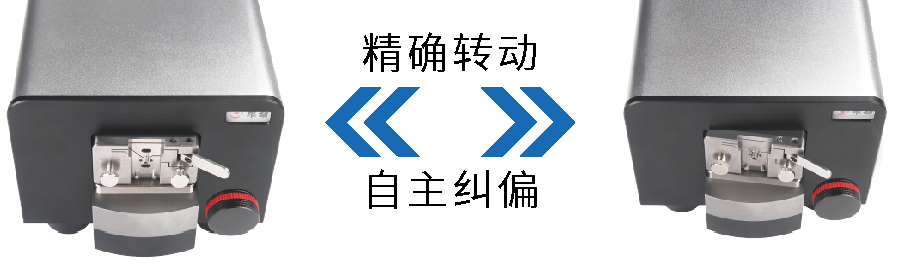

Automatically rotates to any APC angle between 0 and 12 degrees
-
Equipped with a high-precision angle feedback system (0.0027°), it maximizes APC angle measurement accuracy while meeting the special angle measurement requirements of non-standard connectors. It automatically rotates into position with a single button press and can self-correct to restore normal operation when the angle is altered by external forces.
Instrument Selection
The WKFI-MAX automatic interferometer is available in three models
-
WKFI-A3
-
WKFI-A4
-
WKFI-A5
Features 2D end-of-line inspection capabilities
-

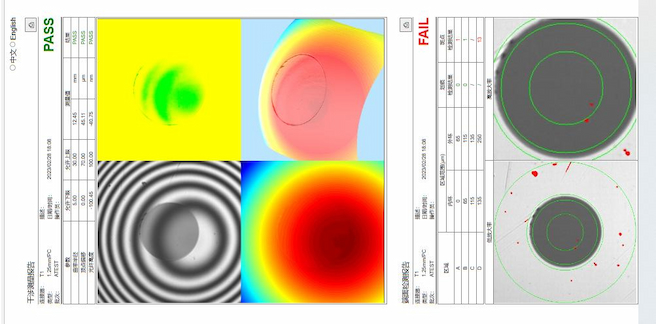

Can save 3D and 2D reports simultaneously
High-Precision Fiber Optic Length Measurement
Each set of numbers represents our commitment to professionalism and integrity.
| Measurement Parameters | Measurement Range | Repeatability | Reproducibility |
| Radius of curvature(mm) | 3~∞ | ±0.01 | ±0.02 |
| Fiber height(nm) | -2000~+2000 | ±1.0 | ±2.0 |
| Vertex Offset(μm) | 0~500 | ±0.5 | ±1.5 |
| APC angle (°) | 0~12 | ±0.01 | ±0.02 |
| Angular error (°) | ±1 | ±0.01 | ±0.02 |
